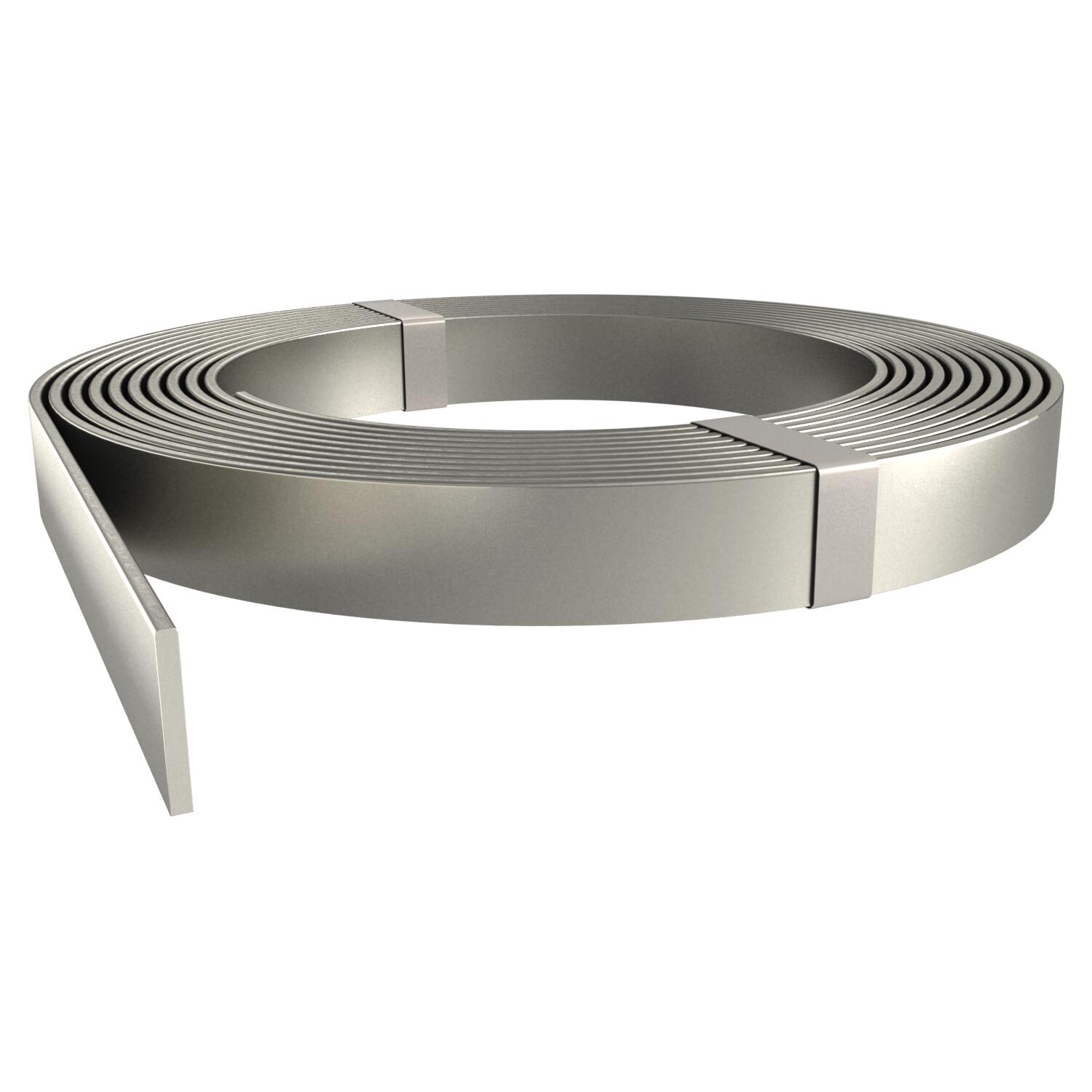

Stainless steel flat conductor

Št. art. 5018730 | EAN 4012195022015

30 mm
3,5 mm
Opis izdelka

Opis izdelka

• Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• According to the foundation earth electrode standard DIN 18014, V4A is required in the earth
• For use in areas at risk of corrosion
• For lightning protection, earthing systems and ring equipotential bonding
  • Lightning current-tested
Tehnični podatki

Tehnični podatki

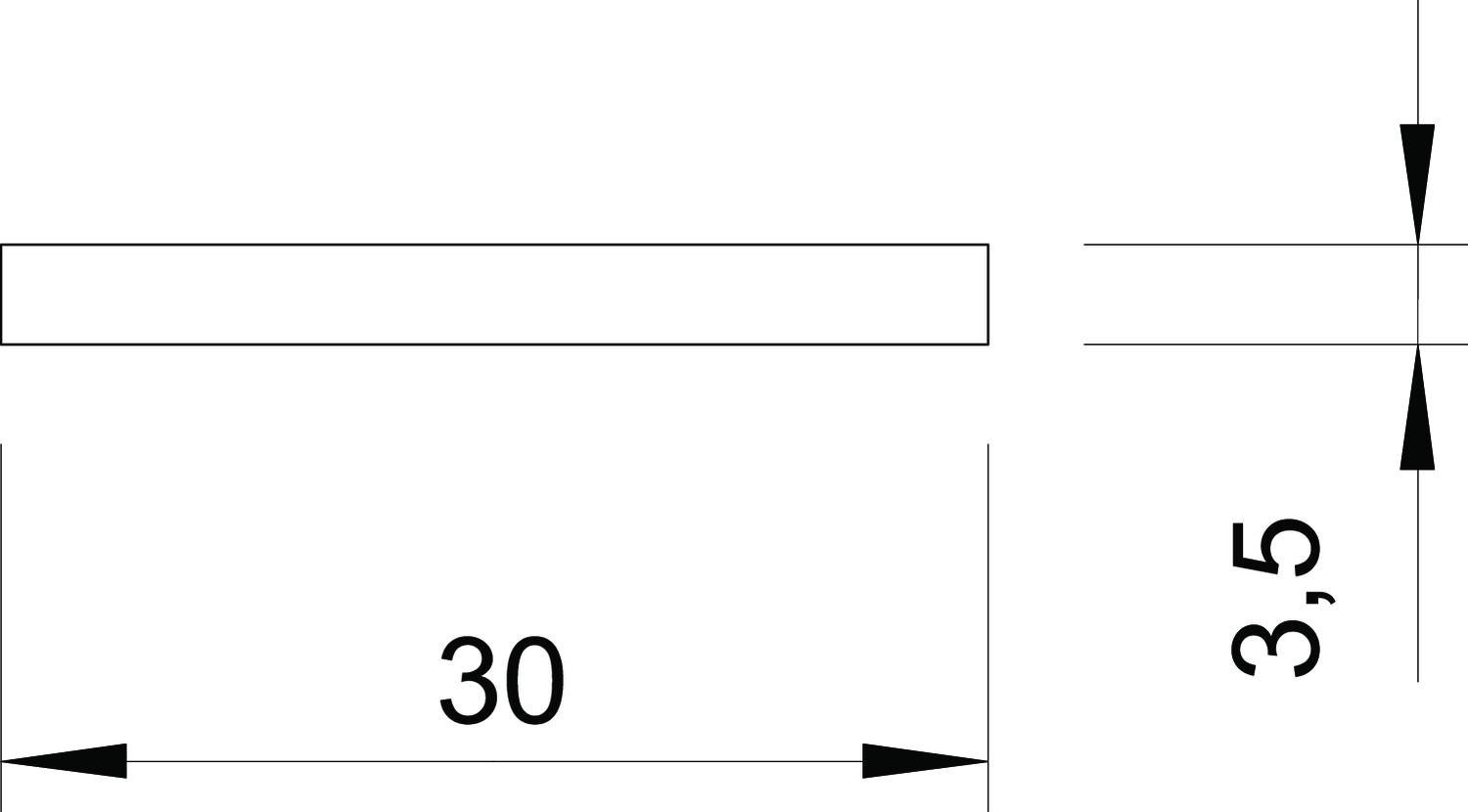

Dimenzija 30x3,5mm
Length tolerance ± 5 %
Material Edelstahl, rostfrei 1.4571/1.4404
Mera B 30 mm
Mera H 3,5 mm
Običajni obroč (pribl. kg) 21
Običajni obroč (pribl. m) 25
Presek 105 mm²
Širina 30 mm
Višina 3,5 mm
Vsi tipi

Vsi tipi

Tip Širina Višina Št. art. Količina Min. prodajna enota
5052 V2A 30X3.5 30 mm 3,5 mm 5018501
50 m
5052 V4A 30X3.5 30 mm 3,5 mm 5018706
50 m
5052 V4A 30X3.5 30 mm 3,5 mm 5018730
25 m
Pribor

Montažni pribor

Proizvodi Tip Št. art. Količina Min. prodajna enota
Cross-connector with intermediate plate for Rd 8−10 mm A4 Cross-connector with intermediate plate for Rd 8−10 mm A4 252 8-10 V4A 5312318
10 Kos
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4 Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4 252 8-10x16 V4A 5312346
10 Kos
Cross-connector round/round without intermediate plate A4 Cross-connector round/round without intermediate plate A4 253 8-10 V4A 5312582
25 Kos
Cross-connector for round conductors and flat conductors A4 Cross-connector for round conductors and flat conductors A4 252 8-10xFL30V4A 5312656
10 Kos
