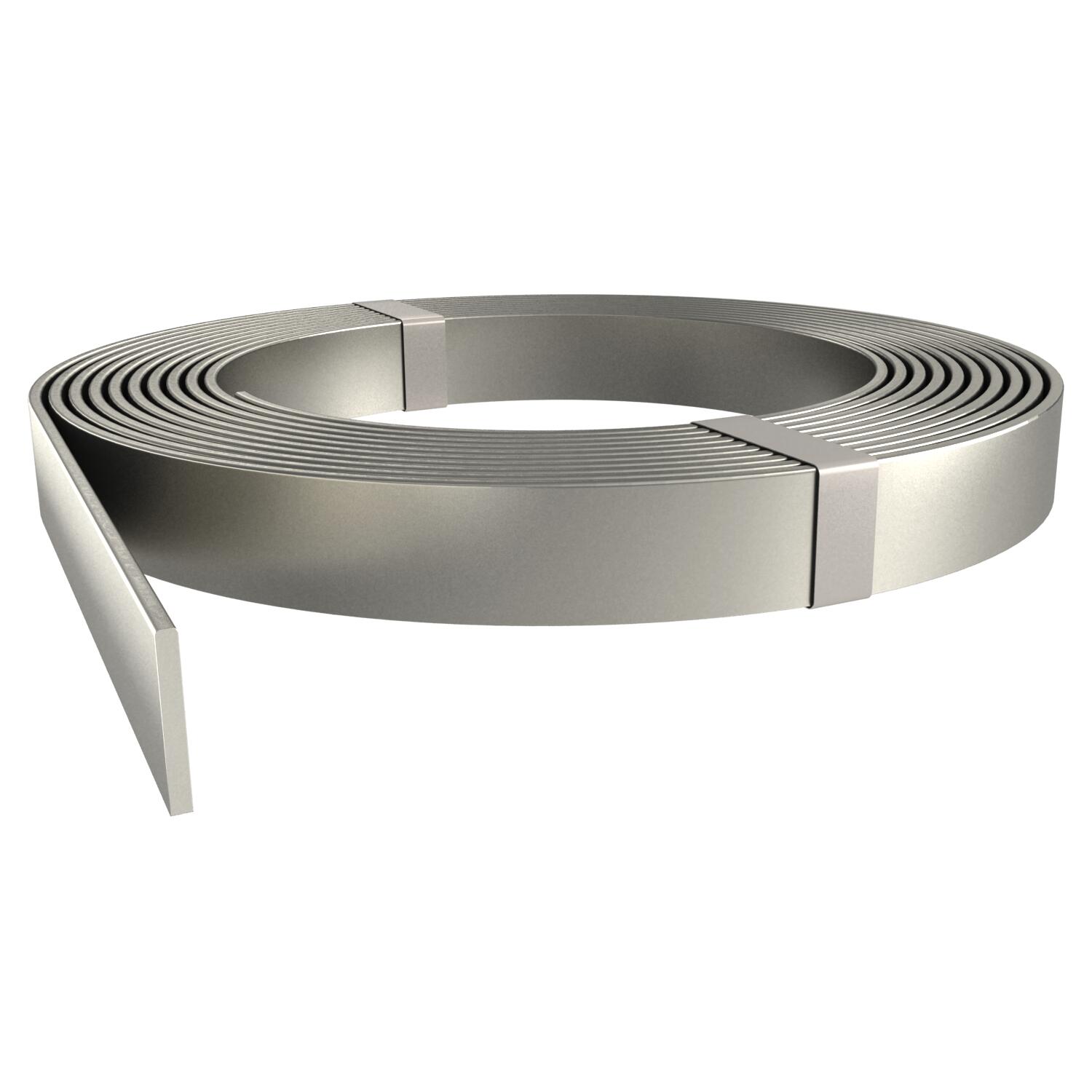

Stainless steel flat conductor A4

Št. art. 5018706 | EAN 4012195800477

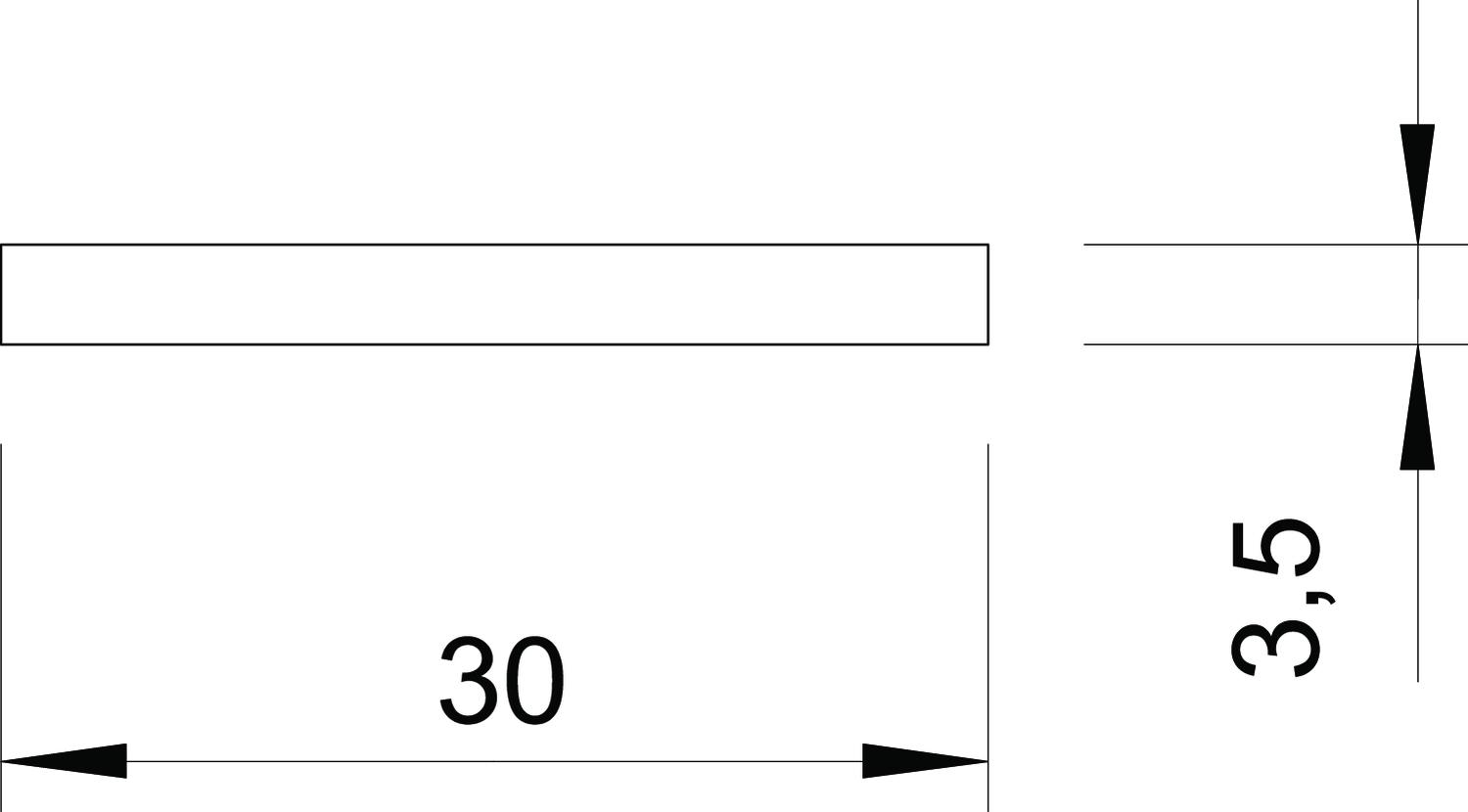

30 mm
3,5 mm
Opis izdelka

Opis izdelka

• Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• According to the foundation earth electrode standard DIN 18014, V4A is required in the earth
• For use in areas at risk of corrosion
• For lightning protection, earthing systems and ring equipotential bonding
  • Lightning current-tested
Tehnični podatki

Tehnični podatki

Dimenzija 30x3,5mm
Length tolerance ± 5 %
Material Edelstahl, rostfrei 1.4571/1.4404
Mera B 30 mm
Mera H 3,5 mm
Običajni obroč (pribl. kg) 42
Običajni obroč (pribl. m) 50
Presek 105 mm²
Širina 30 mm
Višina 3,5 mm
Vsi tipi

Vsi tipi

Tip Širina Višina Št. art. Količina Min. prodajna enota
5052 V2A 30X3.5 30 mm 3,5 mm 5018501
50 m
5052 V4A 30X3.5 30 mm 3,5 mm 5018706
50 m
5052 V4A 30X3.5 30 mm 3,5 mm 5018730
25 m
Pribor

Montažni pribor

Proizvodi Tip Št. art. Količina Min. prodajna enota
Cross-connector with intermediate plate for Rd 8−10 mm A4 Cross-connector with intermediate plate for Rd 8−10 mm A4 252 8-10 V4A 5312318
10 Kos
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4 Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4 252 8-10x16 V4A 5312346
10 Kos
Cross-connector round/round without intermediate plate A4 Cross-connector round/round without intermediate plate A4 253 8-10 V4A 5312582
25 Kos
Cross-connector for round conductors and flat conductors A4 Cross-connector for round conductors and flat conductors A4 252 8-10xFL30V4A 5312656
10 Kos
Fixed earthing terminal with axis and double thread FT Fixed earthing terminal with axis and double thread FT 205 DG L180 FT 5420024
10 Kos
Sealing sleeve for flat conductors Sealing sleeve for flat conductors DW FL30x3,5 2360043
1 Kos
Spacer Spacer 1811 5014018
25 Kos
