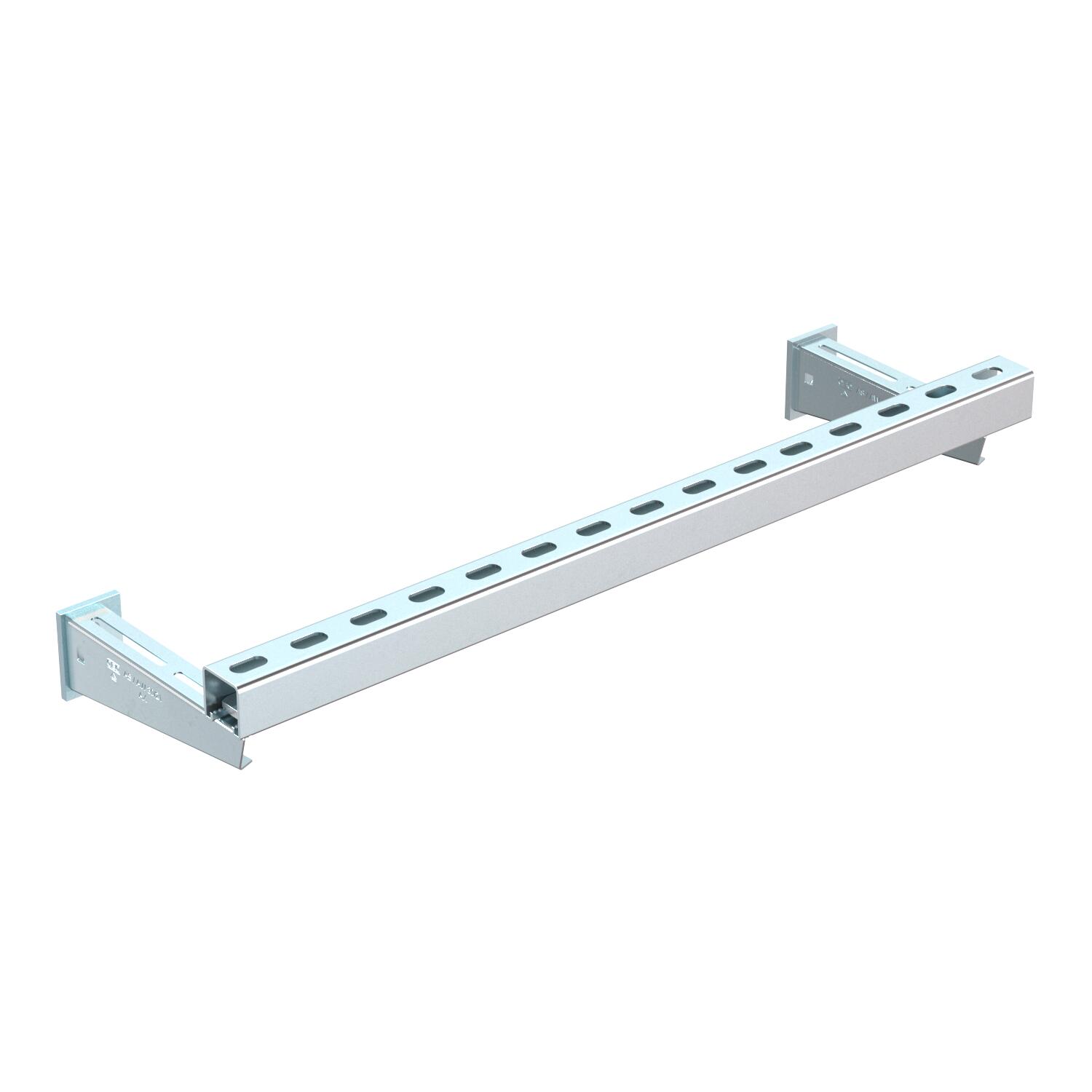

Support construction for insulations, with bracket
Št. art. 7202436 | EAN 4012196839520
- Opis izdelka
-
Opis izdelka
Suspension and fastening material, made of steel, to create the first support of pass-through installations in fire insulation. Mounting of the bracket on the wall, support of the installation using mounting rail.
The maximum distance of the mounting rail to the wall of 200 mm fulfils the requirements of most insulation systems.
- Tehnični podatki
-
Tehnični podatki

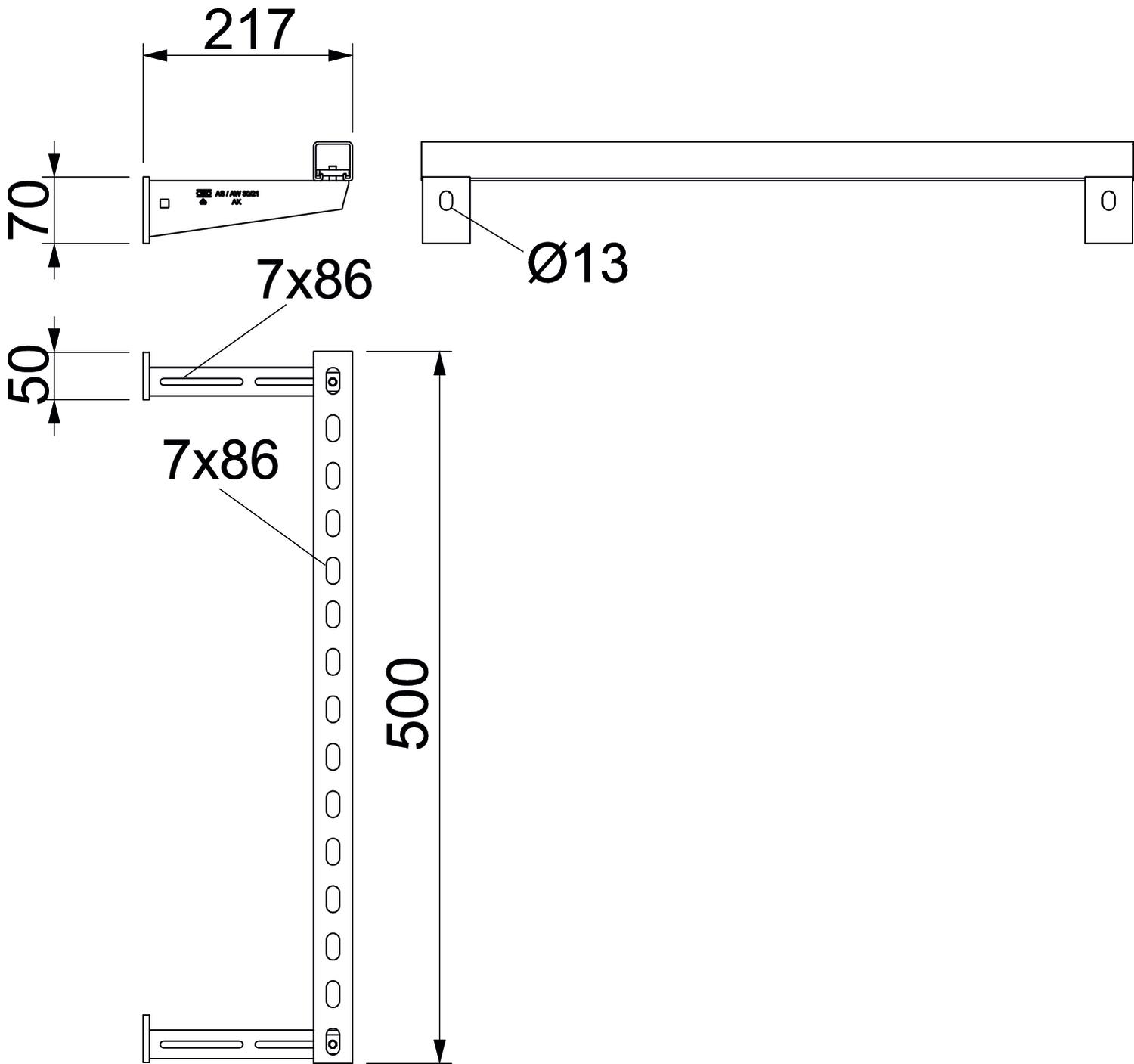

Dimenzija 500mm Material Jeklo Mera A 50 mm Mera B 217 mm Mera H 70 mm Vrsta pribora drugo - Vsi tipi
- Prenosi
-
Podatkovni list SKA 05 VZ / 7202436 , 0.17MB , pdfPomoč pri izbiri Pomoč pri izbiri za zapore prehodov , 2.00MB , pdfNavodila za montažo Navodila za montažo podporne konstrukcije za konzolo , 0.82MB , pdfZa ta proizvod informativna besedila niso na voljo
