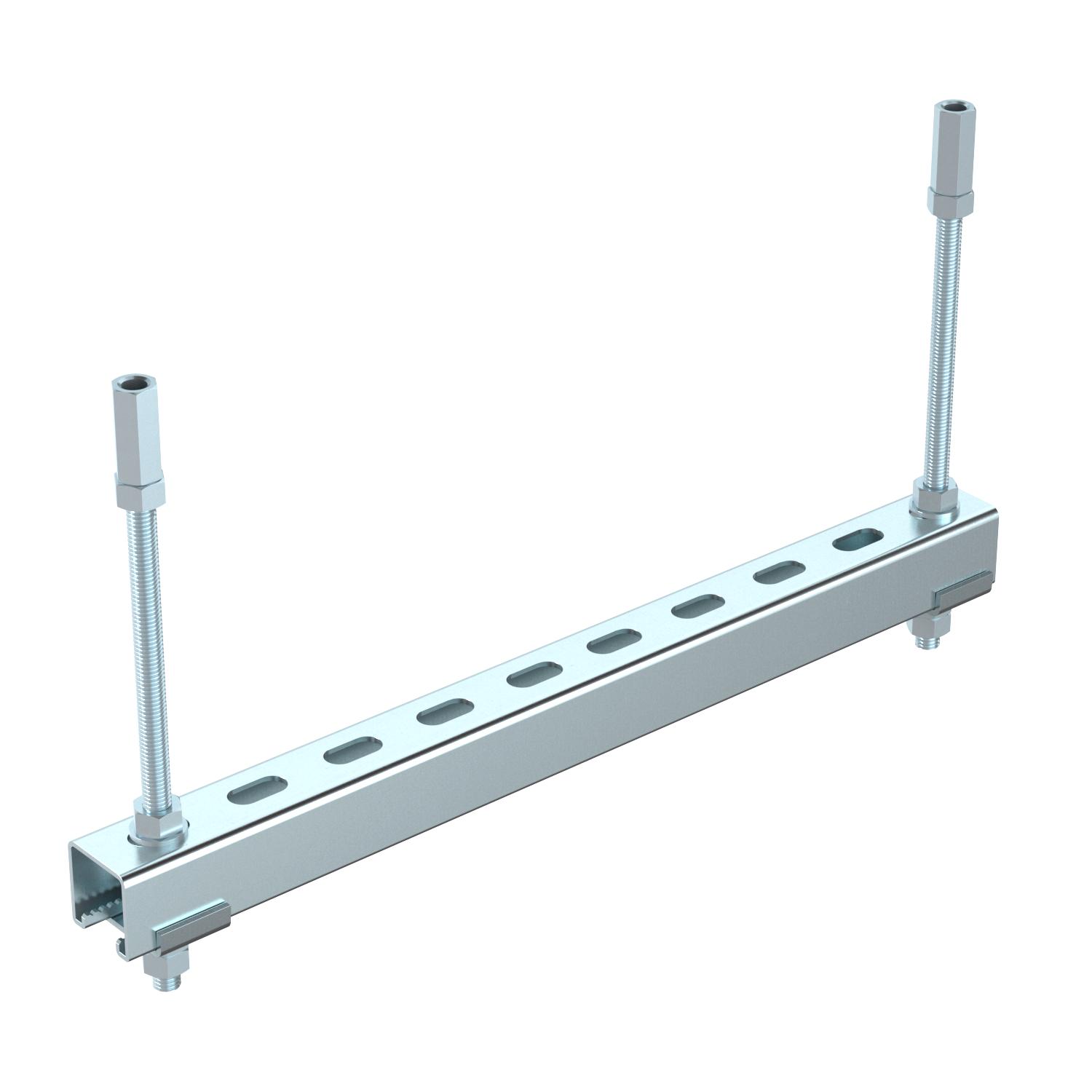

Support construction for insulations, with pendulum suspension
Št. art. 7202446 | EAN 4012196839551
- Opis izdelka
-
Opis izdelka
Suspension and fastening material, made of steel, to create the first support of pass-through installations in fire insulation. Mounting of the pendulum with threaded rods under the ceiling. A maximum of two layers can be mounted with connection sleeves from two sets. The support constructions must be arranged on both sides of the wall at the prescribed distance to the insulation system.
- Tehnični podatki
-
Tehnični podatki

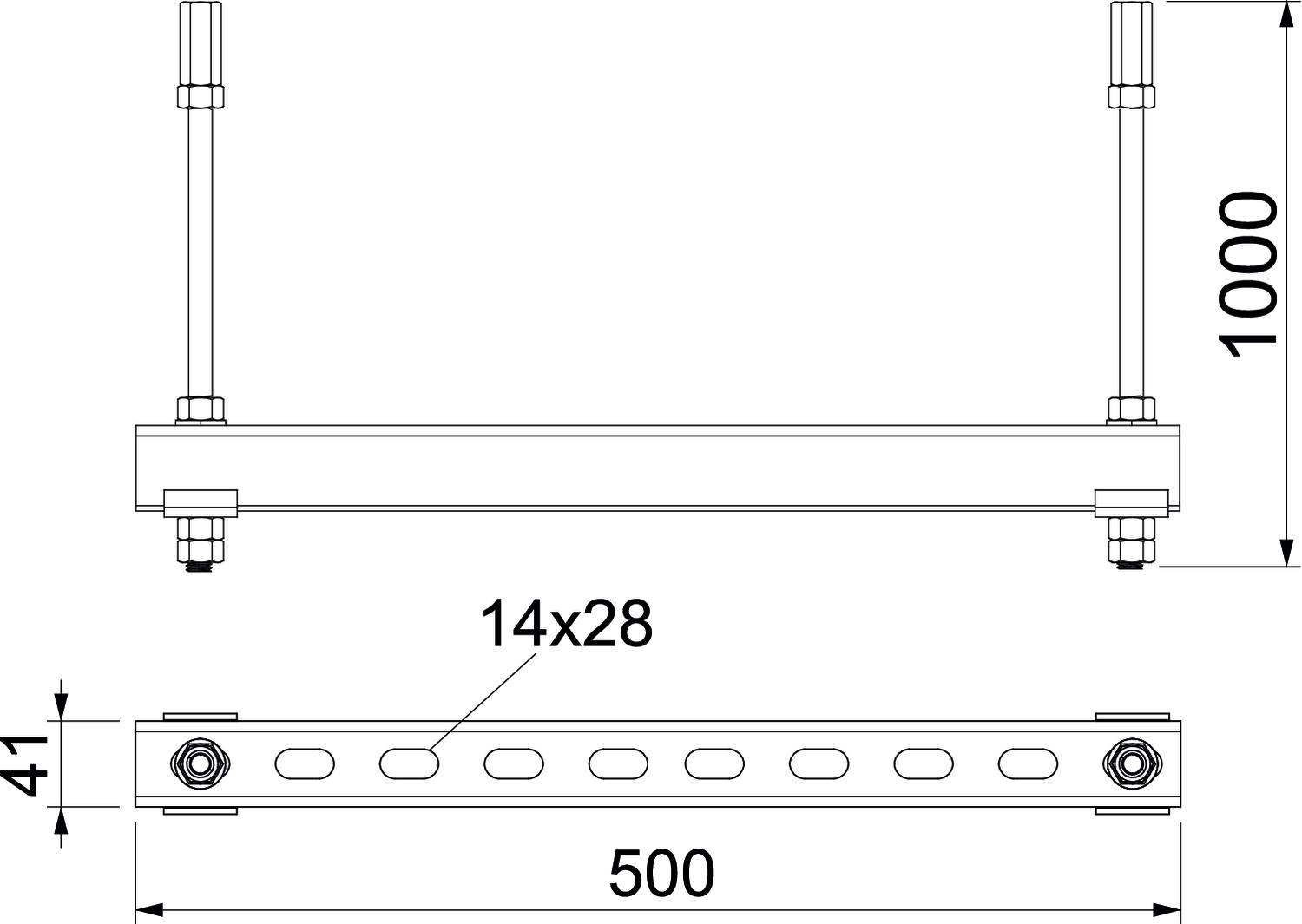

Dimenzija 500mm Material Jeklo Mera L 1000 mm Vrsta pribora drugo - Vsi tipi
- Prenosi
-
Podatkovni list SKP 05 VZ / 7202446 , 0.15MB , pdfPomoč pri izbiri Pomoč pri izbiri za zapore prehodov , 2.00MB , pdfNavodila za montažo Navodila za montažo podporne konstrukcije za visečo obešanje , 0.10MB , pdfZa ta proizvod informativna besedila niso na voljo
