Talna doza UDS6 za instalacijsko cev in kovinski kanal
Št. art. 7400351 | EAN 4012195729815
- Opis izdelka
-
Opis izdelka

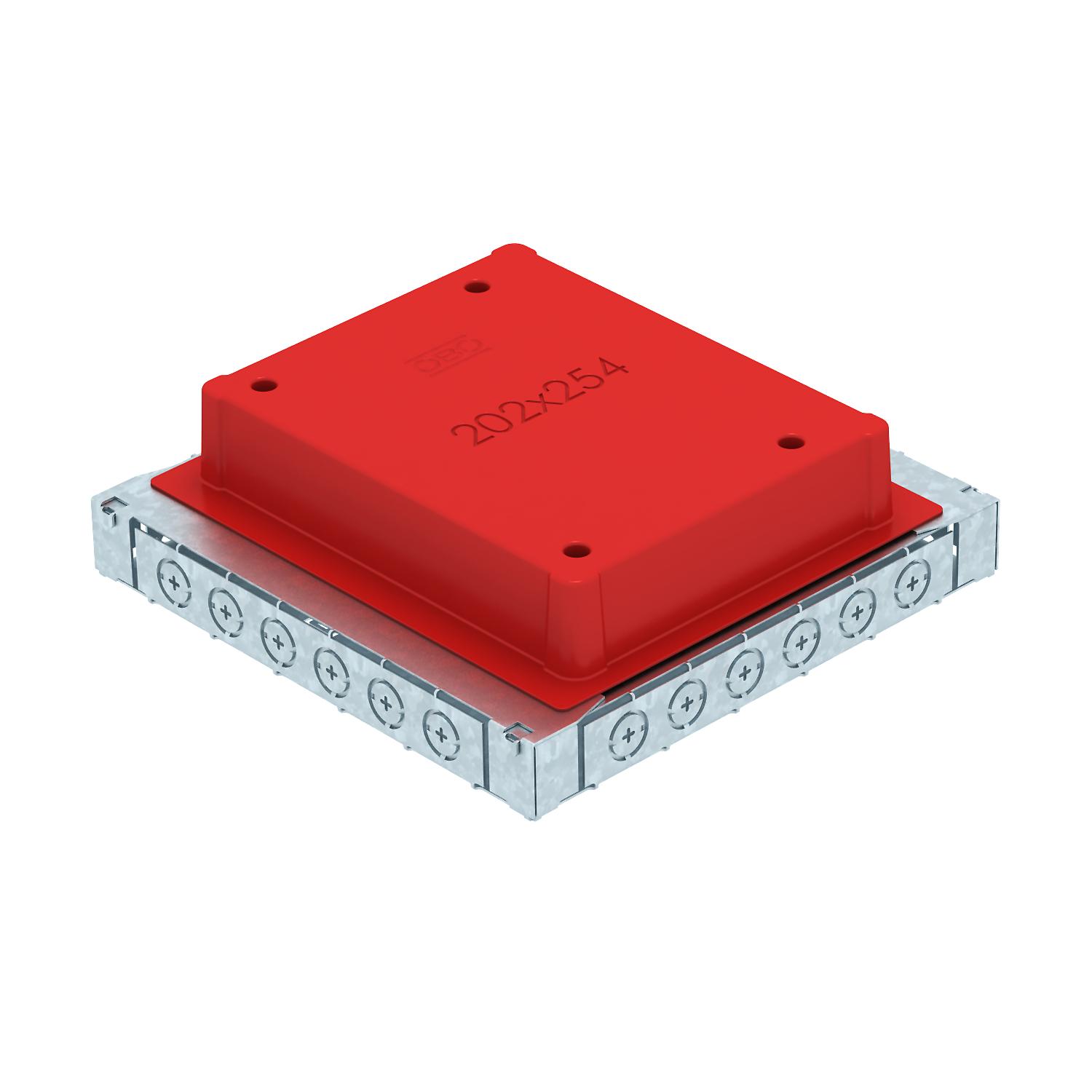

Underfloor outlet box with fixed, unchangeable 202 x 254 mm installation opening for an installation unit of nominal size 6. The mounting opening is created using the screed protection cover contained in the scope of supply. The underfloor box possesses installation openings for a 2 or 3-compartment sheet steel underfloor duct of nominal size 25038 as well as six M20 or M25 installation pipes on all four sides. The box is principally suited for use in floor structures in cement screed with a structure height of up to 90 mm.
-
- Tehnični podatki
-
Tehnični podatki

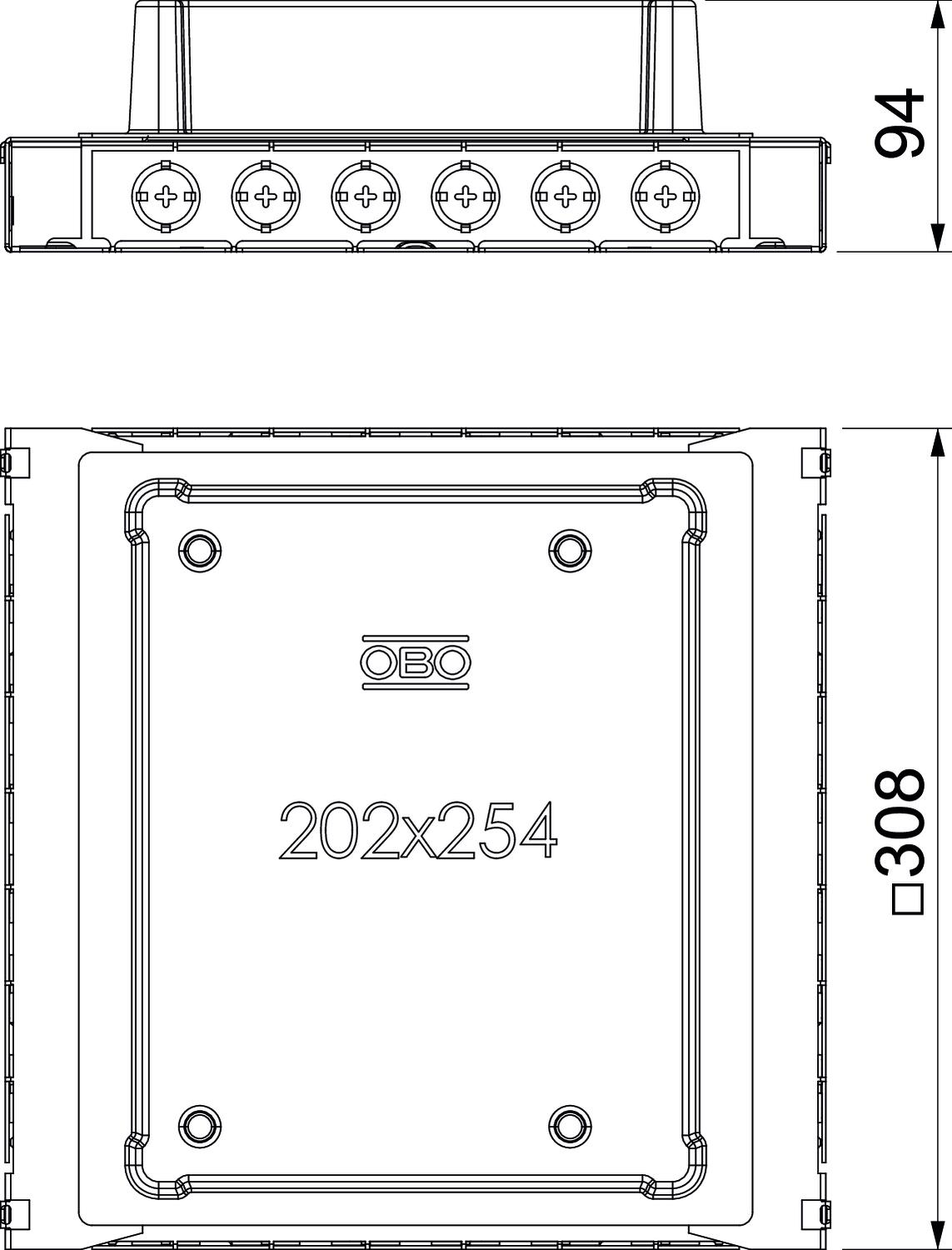

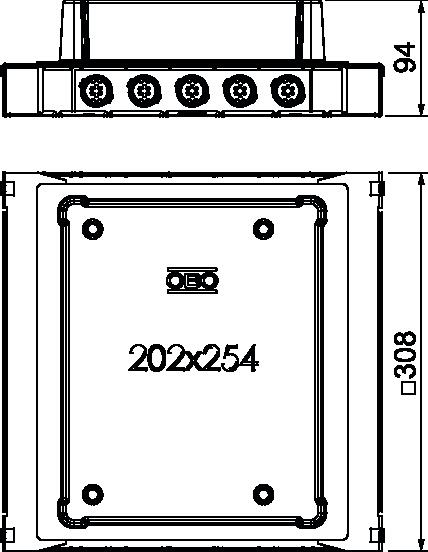

Dimenzija 308x308x92 Maks. višina estriha 90 mm Material Jeklo Min. višina estriha 65 mm Nazivna velikost za enote za vgradnjo aparatov 6 Površina neprekinjeno cinkano v ognju - Vsi tipi
- Prenosi
-
Podatkovni list UDSSD 25038 6 / 7400351 , 0.19MB , pdfIzjava o skladnosti UDSSD 25038 6 / 7400351 , 0.17MB , pdfDovoljenje za opremljanje z znaki Dovoljenje za opremljanje z znaki VDE za EÜK-SN , 0.18MB , pdfZa ta proizvod informativna besedila niso na voljo
