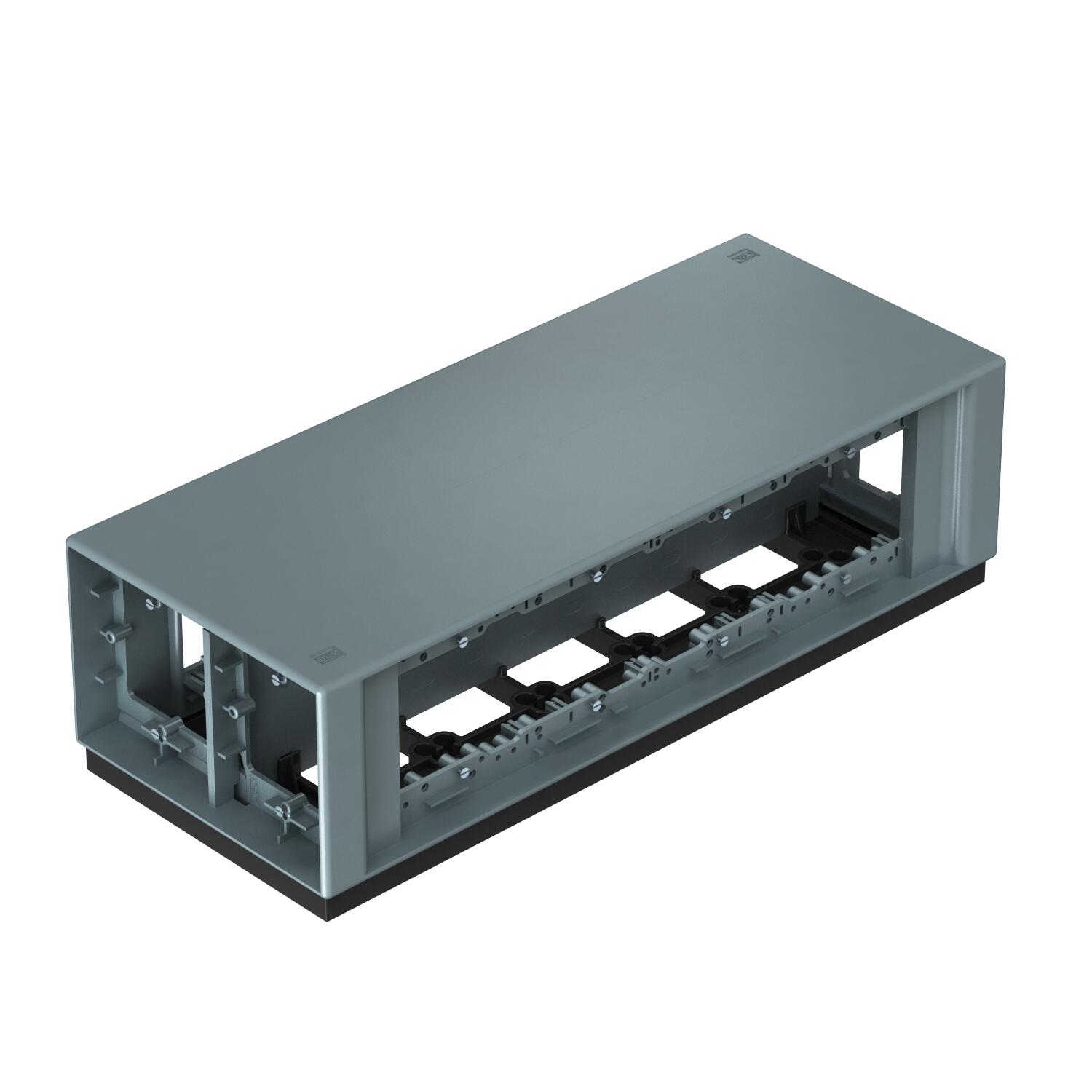

Telitank T12L
Št. art. 7408096 | EAN 4012195114109
- Opis izdelka
-
Opis izdelkaRaised-height Telitank installation units can be used in dry rooms with dry or wet-cleaned floors, according to the standard. They are installed on covers of empty underfloor boxes and trunking of the appropriate underfloor systems and on raised or cavity floors. A system opening of the type "DAT" is required for fixing on systems. Telitanks offer direct installation options for accessories with a support ring or support bracket with a 60 mm fixing groove. All the fixing grooves are arranged vertically. Modul 45 devices are locked directly into the appropriate cover plates. All the Telitank housings are made of shock-resistant polyamide and thus have a high load capacity. As the Telitanks have a fixed location, care should be taken during planning that they are not located in traffic areas.
-
- Tehnični podatki
-
Tehnični podatki

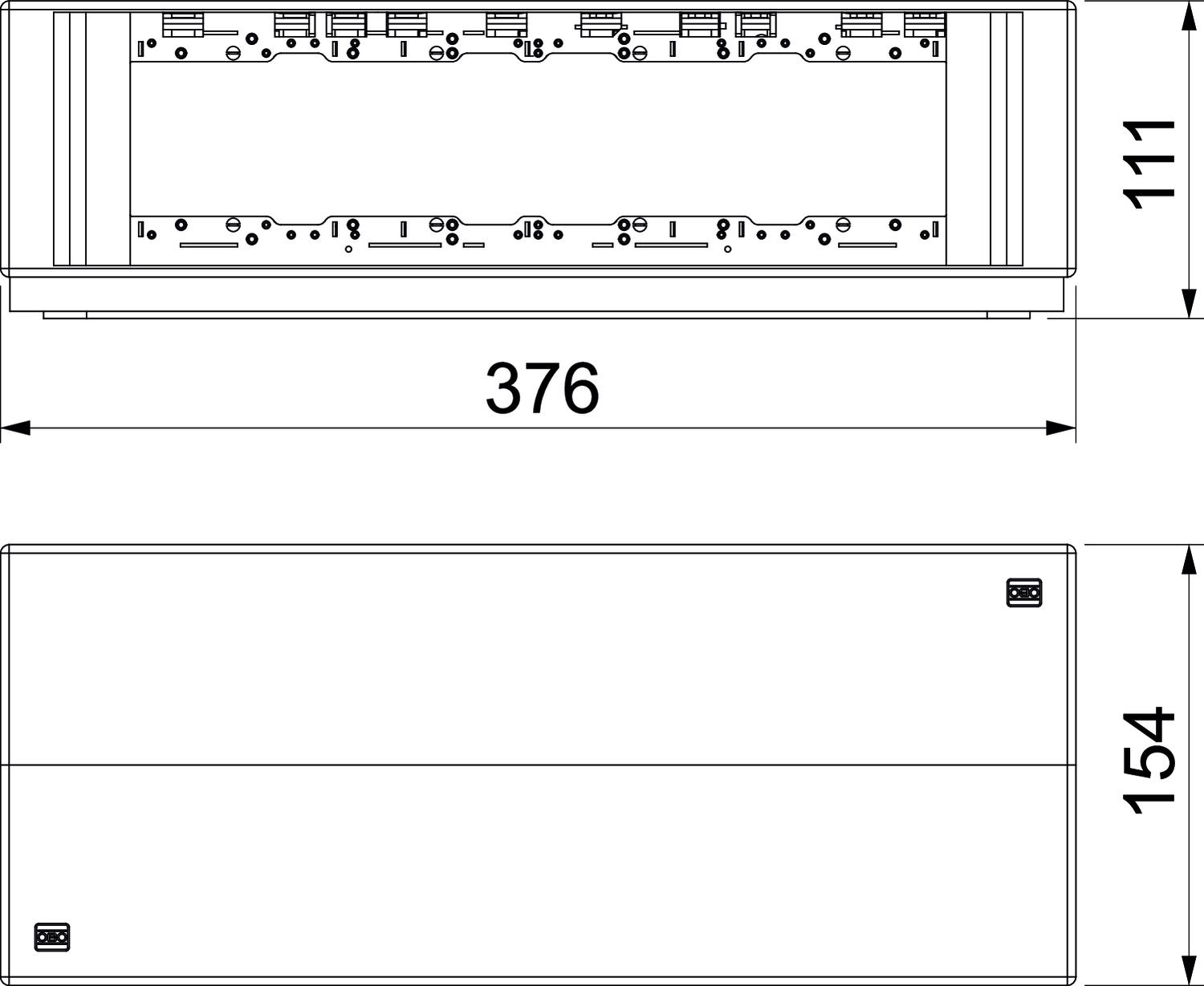

Barva jekleno siva; RAL 7011 Dimenzija 375x154x109 Dolžina 375,5 mm Material poliamid Primerno za mokro vzdrževanje da Primerno za standardni material stikal da Širina 154 mm Število naprav, ki jih je mogoče vgraditi na hrbtni strani 4 Število naprav, ki jih je mogoče vgraditi na sprednji strani 4 Število vgradnih naprav 12 Višina 108,5 mm - Vsi tipi
-
Sistemski dodatki
Proizvodi Tip Št. art. Količina Min. prodajna enota

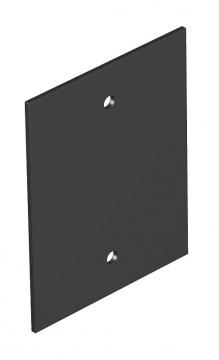

Cover plate, Telitank T12L, blank
T12L P01S 9011 7408108 1 Kos

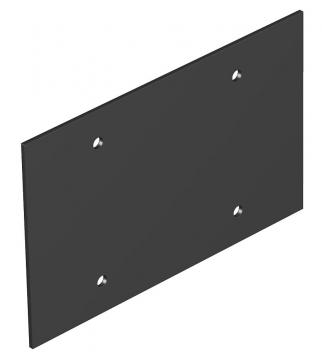

Cover plate, Telitank T12L, blank, for lengthwise side
T12L P02S 9011 7408116 1 Kos

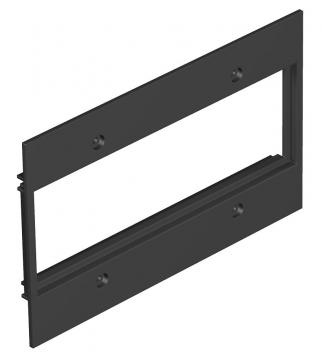

Cover plate, Telitank T12L, Modul 45® installation opening
T12L P17S 9011 7408164 1 Kos - Prenosi
-
Podatkovni list T12L 00C 7011 / 7408096 , 0.20MB , pdfDovoljenje za opremljanje z znaki Dovoljenje za opremljanje z znaki VDE za Telitank , 0.18MB , pdfNavodila za montažo Monteringsanvisning uttagsbox T8NL , 2.00MB , pdfNavodila za montažo Monteringsanvisning uttagsbox F4L , 2.00MB , pdfZa ta proizvod informativna besedila niso na voljo
