Vtični element, 3-polni, navojni priključek, črn
Št. art. 6108054 | EAN 4012195273608
- Opis izdelka
-
Opis izdelka

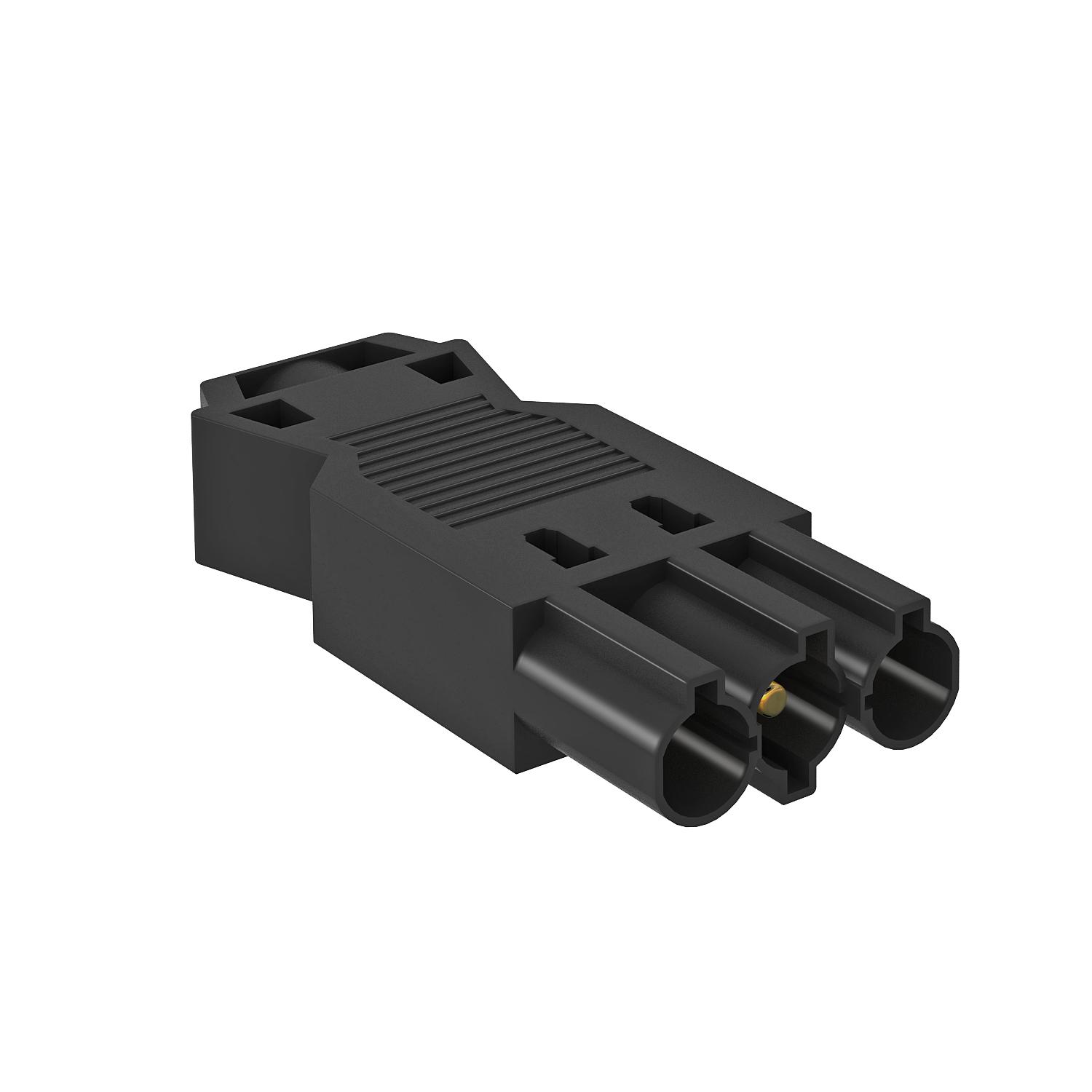

Connector part, 3-pin, type GST18i with screw connection, low height (no slot loss in combination with distributor blocks), for cross-sections of 0.75–2.5 mm², single- and fine-wire cables connectable without end sleeve, for cable diameters between 6.5–10.5 mm (H05VV, NYM), unmounted with strain relief, terminable in situ, 250 V, 16 A.
Stripping length: 31 mm
Insulation removal length: 7 mm
-
- Tehnični podatki
-
- Vsi tipi
- Prenosi
-
Podatkovni list ST-S GST18i3p SW / 6108054 , 0.15MB , pdfKatalog Vgradni sistemi , 28.45MB , pdfIzjava o skladnosti ST-S GST18i3p SW / 6108054 , 0.17MB , pdfREACH Izjava o skladnosti ST-S GST18i3p SW / 6108054 , 0.12MB , pdfRoHS Izjava o skladnosti ST-S GST18i3p SW / 6108054 , 0.12MB , pdfZa ta proizvod informativna besedila niso na voljo
